Front Door Systems

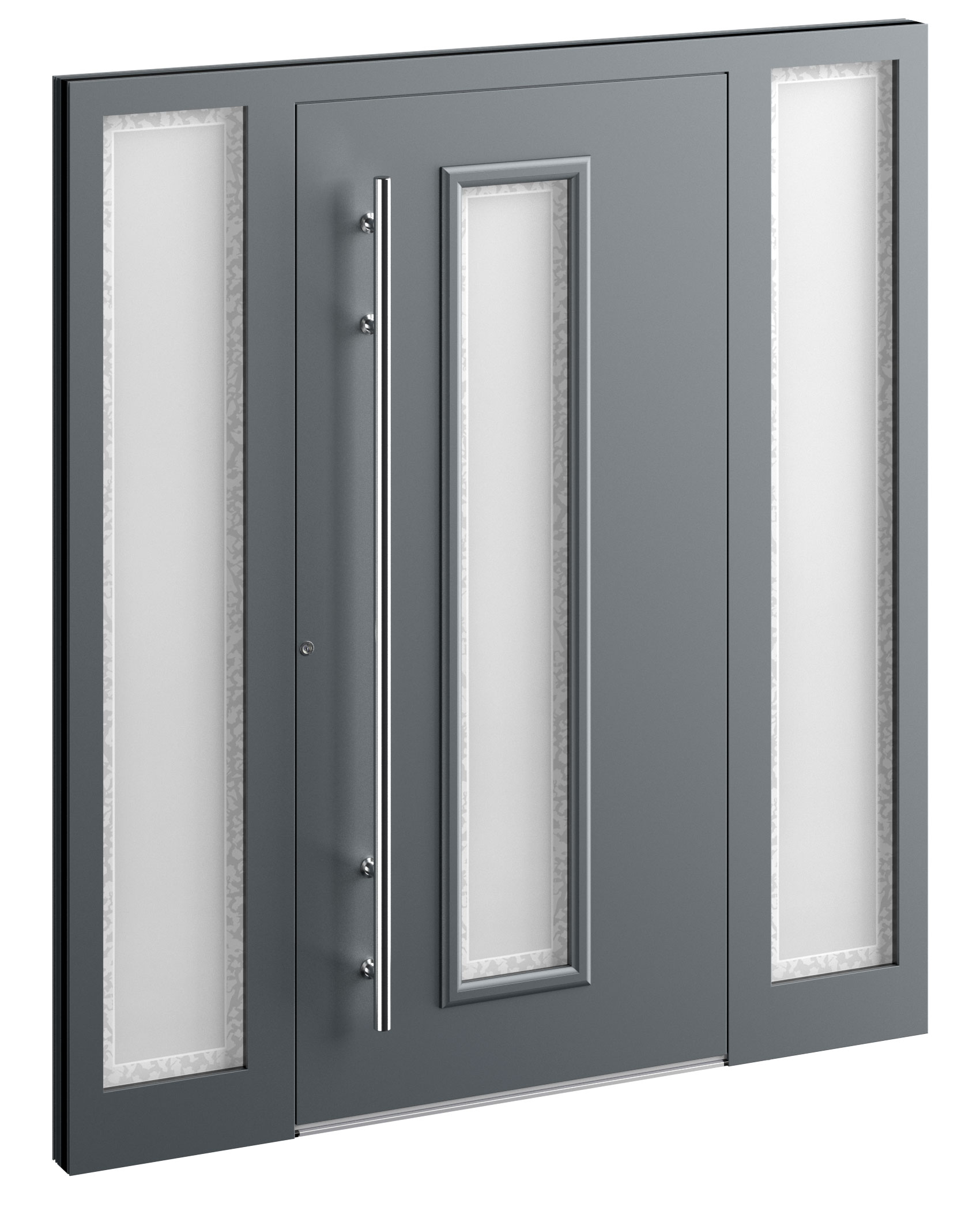

One profile system, two leaf variants and four frame shapes catch the eye with their excellent values. The Therm profile series turns heads with its excellent thermal insulation. Overall UD values of 0.6 W/m2·k are achievable. Two leaf variants are available, Therm and HIGHtherm, which can be combined with the beautifully shaped SOFT, DUO and BLOCK frames to create a very personal dream front door.

HIGHtherm leaf system

  • Opens inward
  • 4 sealing levels
  • Circumferential mid-point sealing system to separate the inner and outer chamber in the rebate
  • Leaf recess 106 mm
  • Automatically retractable floor seal
  • Frame value UF 1.2 W/ m2·k
  • KO-HIGHtherm | SOFT-HIGHtherm | DUO-HIGHtherm | BLOCK-HIGHtherm
  • Thermal insulation panelling only from 60 mm
  • Only triple laminated glass

HIGHtherm leaf system

  • Opens inward
  • 4 sealing levels
  • Circumferential mid-point sealing system to separate the inner and outer chamber in the rebate
  • Leaf recess 106 mm
  • Automatically retractable floor seal
  • Frame value UF 1,2 W/ m2·k
  • KO-HIGHtherm | SOFT-HIGHtherm | DUO-HIGHtherm | BLOCK-HIGHtherm
  • Thermal insulation panelling only from 60 mm
  • Only triple laminated glass

  • KOtherm 96 | KO-Hightherm

    • Flush-mounted frame
    • opening inwards



    BLOCKtherm l BLOCK-Hightherm

    • Block-shaped frame
    • Inward opening

    BLOCKtherm with BLOCKtherm mullion l BLOCK-Hightherm with BLOCKtherm mullion

    • Block-shaped frame
    • Block-shaped mullion
    • Opening inwards



  • SOFTtherm l SOFT-Hightherm

    • Rounded frame
    • Inward opening



    SOFTtherm with DUOtherm mullion l SOFT-Hightherm with DUOtherm mullion

    • Rounded frame
    • Rounded mullion
    • Inward opening

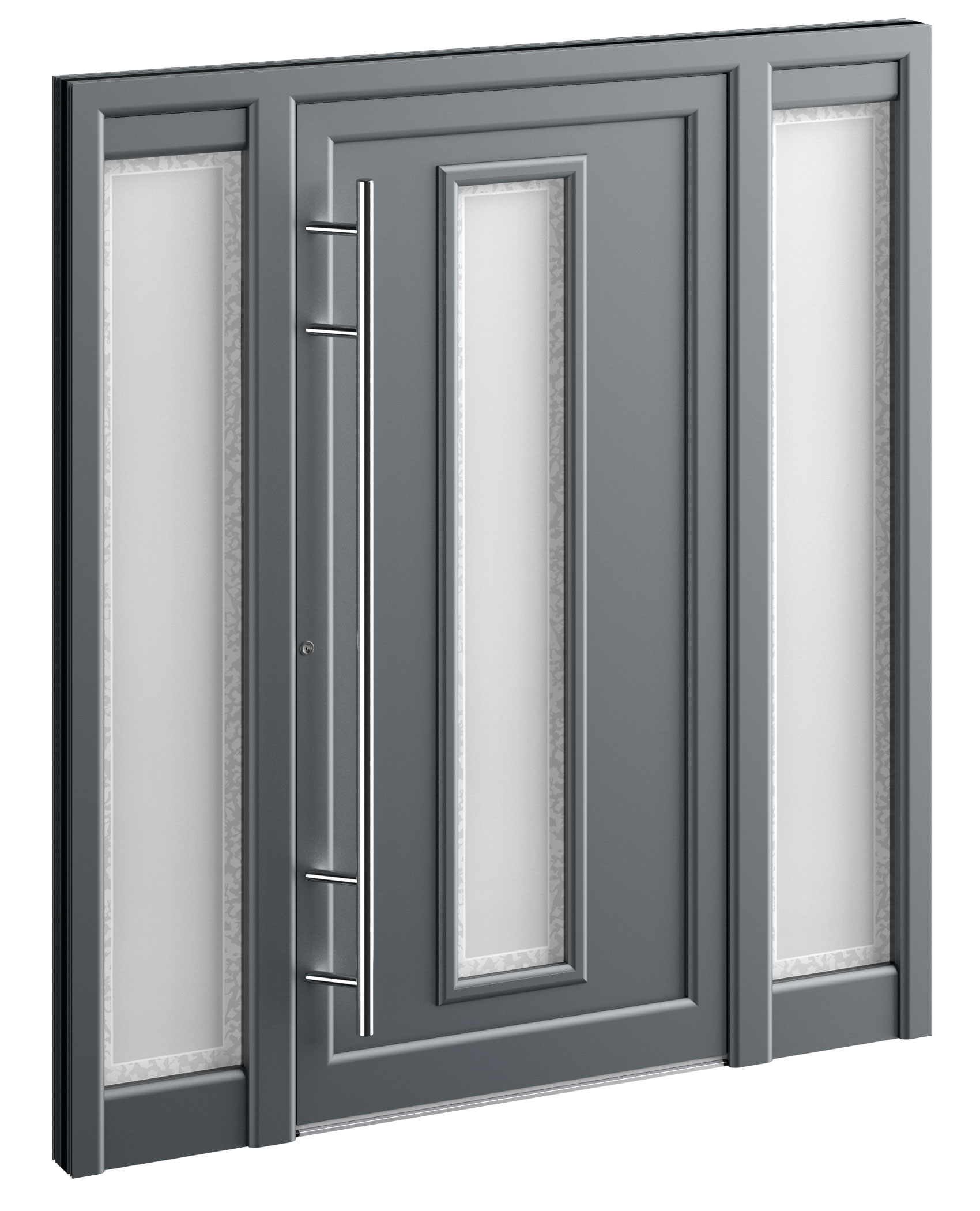

    DUOtherm l DUO-Hightherm

    • Rounded frame
    • Rounded mullion
    • Rounded sash frame
    • Rounded glazing beadRou
    • nded plinth frame
    • Inward opening

  • KOtherm 96 | KO-Hightherm

    • Flush-mounted frame
    • opening inwards



    BLOCKtherm l BLOCK-Hightherm

    • Block-shaped frame
    • Inward opening

    BLOCKtherm with BLOCKtherm mullion l BLOCK-Hightherm with BLOCKtherm mullion

    • Block-shaped frame
    • Block-shaped mullion
    • Opening inwards



  • SOFTtherm l SOFT-Hightherm

    • Rounded frame
    • Inward opening



    SOFTtherm with DUOtherm mullion l SOFT-Hightherm with DUOtherm mullion

    • Rounded frame
    • Rounded mullion
    • Inward opening



    DUOtherm l DUO-Hightherm

    • Rounded frame
    • Rounded mullion
    • Rounded sash frame
    • Rounded glazing beadRou
    • nded plinth frame
    • Inward opening

KO 80 HD – KO 80 HDA
KO 80 HD is a universal profile system that is available to open inward or outward. Leaf models are available in which the panels overlap outside or on both sides. Isopor cores between the profile chambers and three sealing levels ensure good thermal insulation. Round and segmental arch designs are possible.

NT 70 HD – Nebeneingangstüren

Grundausstattung & Beschläge:

  • Bei einer Höhe bis 2200 mm: 2 Stück Aufschraubtürbänder, dreidimensional verstellbar
  • Bei einer Höhe von 2201 mm bis 2400 mm: 3 Stück Aufschraubtürbänder, dreidimensional verstellbar
  • KOMPO-Dreifachverriegelung
  • Dornmaß 35 mm
  • Aufbohrgeschützter Profilzylinder Kaba expert
  • 5 Wendeschlüssel und Sicherungskarte
  • Innen und außen Standard-Drücker mit Langschild und Rückholfeder
  • Weiße Türen mit Drücker in weiß, braune Türen mit Drücker in braun, farbige Türen mit Drücker in EV1 silber
  • 16 Standardfarben, kombinierbar (ohne Mehrpreis)

Konstruktionsmerkmale:

  • Bautiefe 70 mm
  • Flächenbündiger Blend- und
  • Flügelrahmen innen und außen
  • Umlaufendes Flügelprofil
  • 2 Anschlagdichtungsebenen umlaufend
  • Nach innen oder außen öffnend (Mehrpreis)
  • 2 Haustürbänder
  • Hochwärmedämmender Isopor-Dämmkern
  • Füllungsstärke 40 mm
  • Lieferbar in den Widerstandsklassen RC 2 und RC 3
  • Kunststoffbodenschwelle
  • Nebeneingangstür für:
  • Separate Einliegerwohnungen/Souterrain/Garagen
  • Keller und Nebeneingänge mit erhöhten Anforderungen
